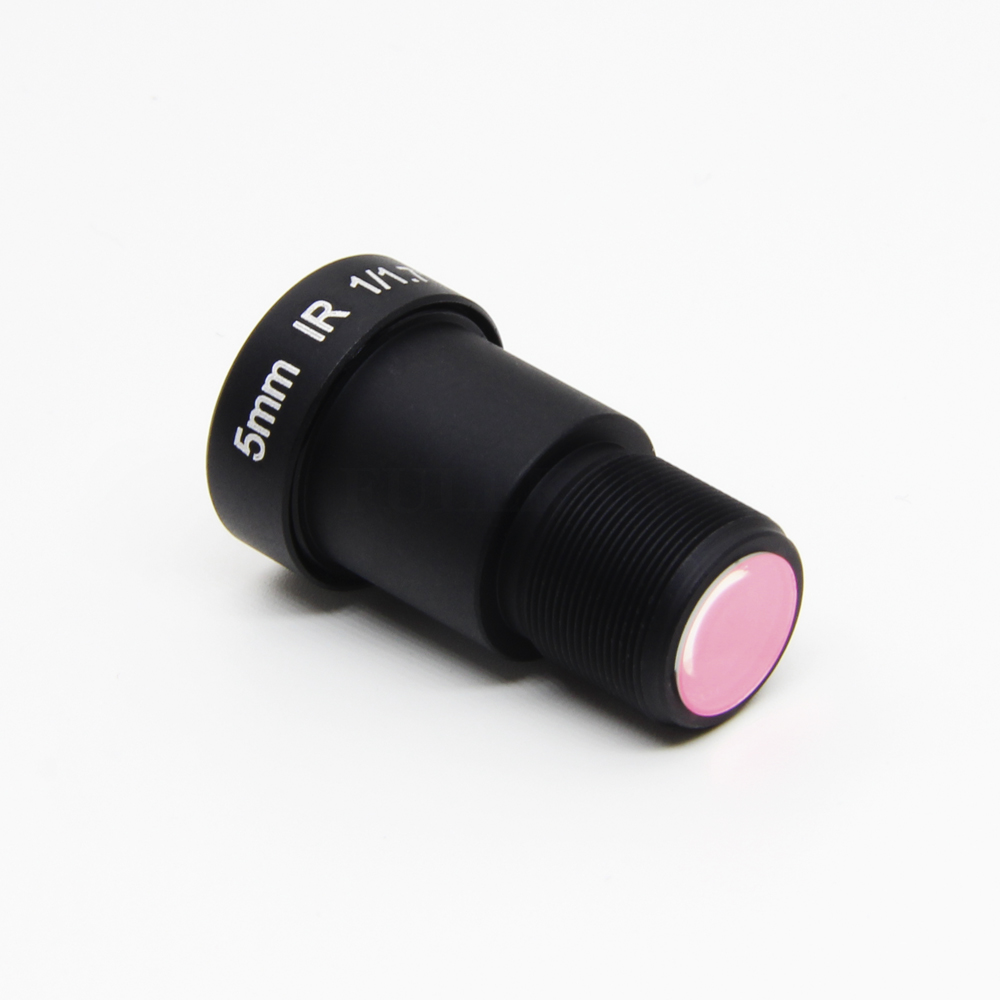

4K Lens 12Megapixel M12 1/1.7" 5mm For SJCAM Xiaomi Yi Gopro Firefly Eken Action Camera DJI Runcam Drone UAVS:
Specification
| Model | MR-C0512WBL-12MP | Mount | M12*0.5 |
| Focal Length | 5mm | Resolution | 12.0MP |
| Sensor Size | 1/1.7'' | BFL | 6.39mm |
| Aperture | F2.0 | Dimension | Φ17×29.4mm |
| MOD | 0.3m | MBF | 6.05mm |
| Angle of View | 114.4°×87°×61.8° | Distortion | -43.7% |
| Weight | 11.6g |
Features:
1. F2.0 big aperture 4K HD Camera lens, 5mm fixed board lens, Camera lens with IR filter.
2. 1/1.7" Format High quality cctv camera lens, optical lens ,M12 Mount Lens
3. 5mm focal length 114.4 Degree of DFOV security lens
4. HD Lens for 12mp Megapixel camera, Surveillance Lens, large aperture security Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.
Products range:
Octavia provides customers with precision optical components, optical lens assemblies, custom-made lens, standard lens assemblies include 3MP, 5MP CCTV Lenses, 12MP ITS Lenses, 5 machine vision lenses, automotive vision lenses. Our products are widely used in precision instruments, medical equipment, automation equipment. Automobile, automatic optical inspection, security, ITS and so on. North America, Europe, Japan and Korea are most of the current customer’s base areas we supply.
Advantages and characteristics of Lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 10.0 Megapixel, IR Cut and Lens Holder are available as per request.
Product Tags:
|
|

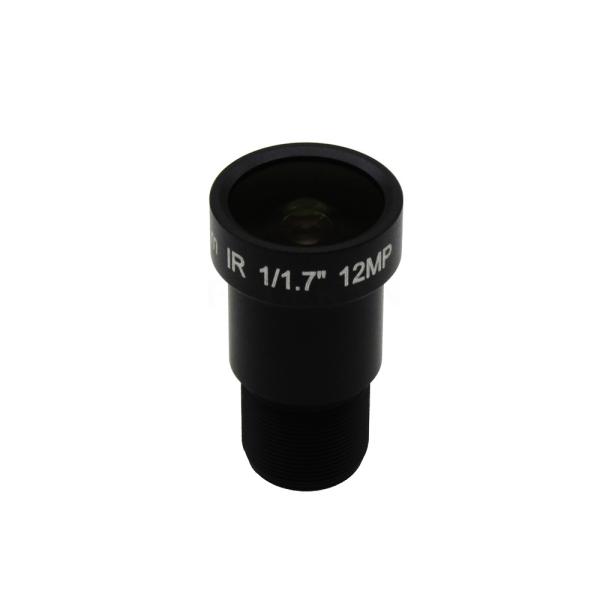

5mm Security Camera Lens Images
|
